Newton's Method in C++: A Step-by-Step Implementation Guide

Shot by Johannes Plenio

Learn how the Newton-Raphson method finds function roots using tangent lines. Includes step-by-step C++ implementation, mathematical derivation, and a coding challenge.

🔍 How Newton’s Method Finds Roots

Let’s start with a function $f(x) = x^2 - 3$ and determine its roots.

Newton’s method suggests starting with an initial guess, say 2, as our $x_0$ . Then, we draw a tangent line at this point.

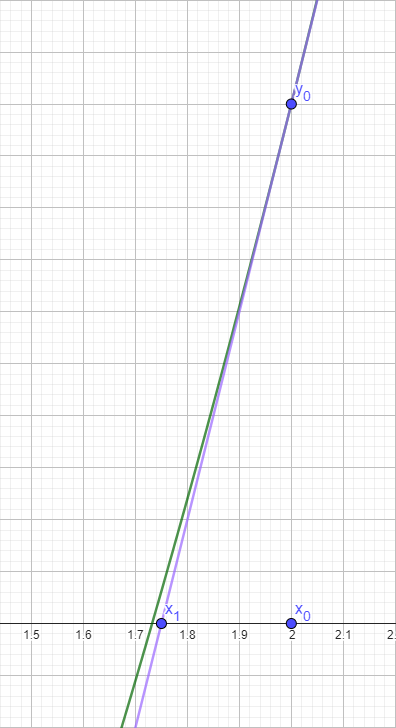

Visualizing the first step of Newton's method

If we directly observe the graphic, we can see that the intersection point, denoted as $x_1$ , where the tangent line crosses the x-axis is very close to our root. But how do we determine this intersection point?

📐 The Math Behind the Iteration

Let’s consider the definition of a tangent:

f'(x) = \lim_{\Delta x \to 0} \frac{\Delta y}{\Delta x}

Plugging in $x_0$ for $x$ , and knowing $\Delta y$ which is $f(x_0)$ and $\Delta x$ which becomes $x_0 - x_1$ :

f'(x_0) = \frac{f(x_0)}{x_0 - x_1}

Now, let’s isolate $x_1$ to express it as a function of $f'(x_0)$ , $f(x_0)$ , and $x_0$ :

\begin{align*} f'(x_0) &= \frac{f(x_0)}{x_0 - x_1} \\[12pt] f'(x_0)(x_0 - x_1) &= f(x_0) \\[12pt] x_0 - x_1 &= \frac{f(x_0)}{f'(x_0)} \\[12pt] x_1 &= x_0 - \frac{f(x_0)}{f'(x_0)} \end{align*}

Therefore, if we provide an initial guess, the function we want to resolve, and its derivative, we can find the root.

🛠️ Building the Algorithm in C++

Let’s implement this step by step.

As discussed, we need a function that takes an initial guess, the function itself, and its derivative. To use std::function, we include the <functional> header file.

cpp

      #include <functional>

double newton_raphson(std::function<double(double)> func, std::function<double(double)> dervi, double initialGuess)
{
    // implementation here
}

We need a tolerance to stop our calculation and a maximum iteration count to prevent looping forever. We use size_t, defined in <cstddef>.

cpp

      #include <functional>
#include <cstddef>

double newton_raphson(std::function<double(double)> func, std::function<double(double)> dervi,
                    double initialGuess, double tolerance, size_t maxIteration)
{
    // implementation here
}

In this function, we will loop until the maximum iteration is reached or we find a result within the tolerance error. Let’s define a while loop for this.

cpp

      #include <functional>
#include <cstddef>

double newton_raphson(std::function<double(double)> func, std::function<double(double)> dervi,
                      double initialGuess, double tolerance, size_t maxIteration)
{
    size_t currentIteration = 0;
    while (currentIteration <= maxIteration)
    {
        ++currentIteration;
    }
}

Before starting the iteration, we should assign our initial guess to the current x, which is the x we are dealing with:

cpp

      #include...

double newton_raphson(std::function<double(double)> func, std::function<double(double)> dervi,
                      double initialGuess, double tolerance, size_t maxIteration)
{
    size_t currentIteration = 0;
    double currentX = initialGuess;

    while (currentIteration <= maxIteration)
    {
        ++currentIteration;
    }
}

For each iteration, we want to calculate the new x using the formula:

x_{current} = x_{previous} - \frac{f(x_{previous})}{f'(x_{previous})}

cpp

      #include...

double newton_raphson(std::function<double(double)> func, std::function<double(double)> dervi,
                      double initialGuess, double tolerance, size_t maxIteration)
{
    size_t currentIteration = 0;
    double currentX = initialGuess;

    while (currentIteration <= maxIteration)
    {
        // Store the x value from the previous iteration as previousX in each iteration
        double previousX = currentX;
        // Calculate the function and derivative values at the current iteration
        double functionValue = func(previousX);
        double derivativeValue = dervi(previousX);
        // Update the value using the Newton-Raphson formula
        currentX = previousX - functionValue / derivativeValue;

        ++currentIteration;
    }
}

🛡️ Adding Tolerance and Safety Checks

Then, we want to return the current x value if we are satisfied with the precision:

cpp

      #include...

double newton_raphson(std::function<double(double)> func, std::function<double(double)> dervi,
                      double initialGuess, double tolerance, size_t maxIteration)
{
    size_t currentIteration = 0;
    double currentX = initialGuess;

    while (currentIteration <= maxIteration)
    {
        // Store the x value from the previous iteration as previousX in each iteration
        double previousX = currentX;

        // Calculate the function and derivative values at the current iteration
        double functionValue = func(previousX);
        double derivativeValue = dervi(previousX);

        // Update the value using the Newton-Raphson formula
        currentX = previousX - functionValue / derivativeValue;

        if (std::abs(currentX - previousX) <= tolerance)
            return currentX;

        ++currentIteration;
    }
}

Additionally, we need to handle the potential division by zero problem:

cpp

      #include...

double newton_raphson(std::function<double(double)> func, std::function<double(double)> dervi,
                      double initialGuess, double tolerance, size_t maxIteration)
{
    size_t currentIteration = 0;
    double currentX = initialGuess;

    while (currentIteration <= maxIteration)
    {
        // Store the x value from the previous iteration as previousX in each iteration
        double previousX = currentX;

        // Calculate the function and derivative values at the current iteration
        double functionValue = func(previousX);
        double derivativeValue = dervi(previousX);

        if (std::abs(derivativeValue) < 1e-12)
            return currentX;

        // Update the value using the Newton-Raphson formula
        currentX = previousX - functionValue / derivativeValue;

        if (std::abs(currentX - previousX) <= tolerance)
            return currentX;

        ++currentIteration;
    }
}

There you go! You’ve just implemented the function! 🥳

💪 Try It Yourself: The Secant Method

The Newton-Raphson method requires a derivative function to proceed successfully. Instead of the derivative, you can use a finite difference method:

f'(x) = \frac{f(x_1) - f(x_2)}{x_1 - x_2}

Consequently, two initial points are needed to calculate the first difference.

Try to implement this function by yourself!
